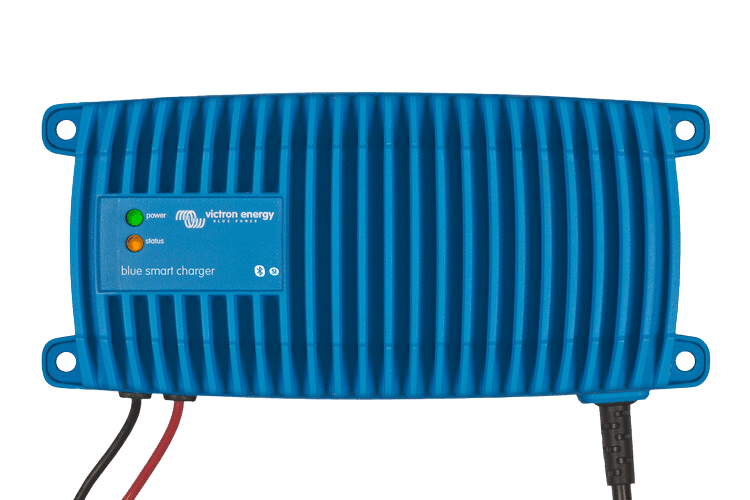

Victron 24V 12A Bluetooth Smart IP67 230V AU/NZ Waterproof Battery Charger
Bluetooth Smart Enabled
Discover the Victron Blue Smart IP67 Charger, a breakthrough in battery charging technology. With Bluetooth Smart integration, this charger allows for easy monitoring and updating, paralleling the capabilities of our renowned IP22 and IP65 chargers.
Robust and Reliable: Waterproof, Shockproof, and Ignition Protected
Crafted to endure challenging conditions, the Blue Smart IP67 Charger's cast aluminium casing and resin-encased electronics offer superior protection against water, oil, and dirt, ensuring consistent performance.
Industry-Leading Efficiency
Boasting an efficiency rate of 92% or higher, this charger sets a new standard in energy conservation, significantly reducing heat waste and lowering power consumption when the battery is fully charged.
Intelligent Adaptive 5-Stage Charging
Employing a microprocessor-controlled 'adaptive' battery management system, the charger optimizes the charging process based on the specific use of the battery.
Innovative Storage Mode for Battery Longevity
When inactive for 24 hours, the charger's storage mode activates, reducing float voltage to minimize battery wear. This proactive feature combats common battery issues like electrolyte stratification and sulphation.
Lithium (LiFePO₄) Battery Compatibility
Not just for traditional batteries, this charger is also adept at charging Li-ion (LiFePO₄) batteries using a simplified bulk – absorption – float algorithm.
Safe Operation in High Temperatures
Engineered for use in high-temperature areas, the charger maintains its functionality up to 60°C, automatically adjusting output in response to temperature increases.
Easy-to-Read Dual LED Status Indicators
The charger features two LEDs for straightforward status updates: a Yellow LED for charging stages and a Green LED for power status.
Applications
- RV and Caravan Use: Keeping Your Adventure Going with the Victron Charger: Ideal for RVs and caravans, this charger ensures your vehicle's battery is always ready for your travels.
- Reliable Marine Battery Charging: Victron's Solution for Boating Enthusiasts: In marine settings, this charger offers dependable, corrosion-resistant battery charging.
- Off-Grid Battery Maintenance: Victron Charger for Remote Power Solutions: Perfect for off-grid living, it provides consistent battery maintenance and charging.
- Industrial Applications: Victron Charger in High-Temperature Environments: Specially designed for industrial settings, this charger operates reliably in hot environments like machinery rooms.
Upgrade to the Victron Bluetooth Smart IP67 230V AU/NZ Waterproof Battery Charger for an unmatched blend of durability, efficiency, and advanced technology.

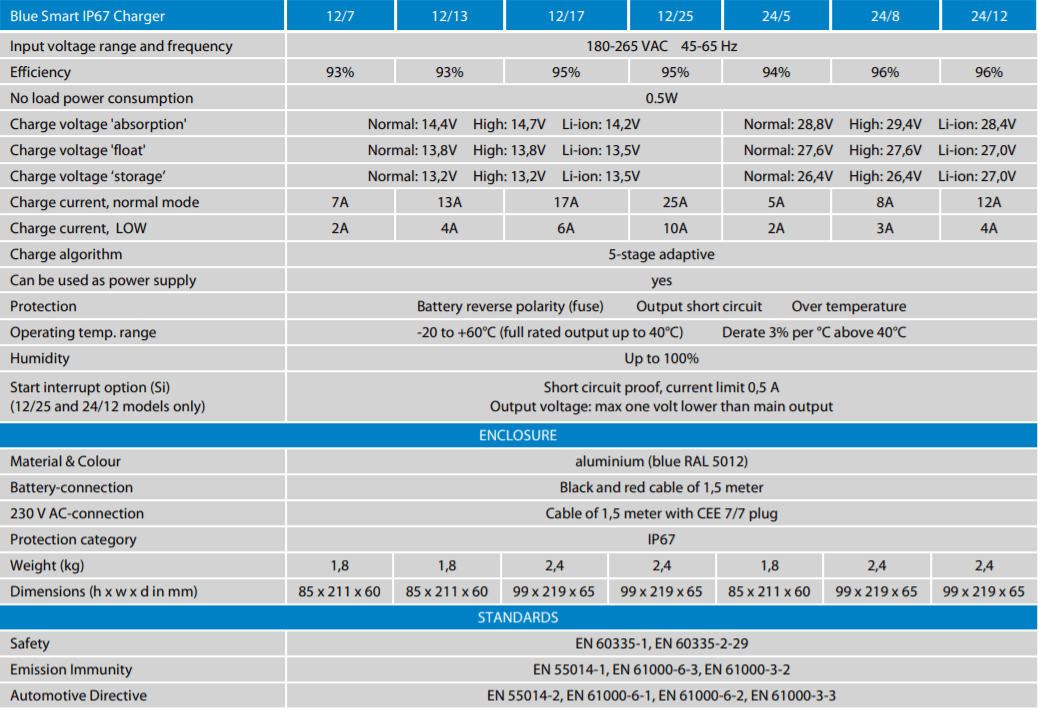

| Blue Smart IP67 Charger | 24/12 |
| Input voltage range and frequency | 180-265 VAC 45-65 Hz |
| Efficiency | 96% |
| No load power consumption | 0.5W |
| Charge voltage 'absorption' | Normal: 28.8V High: 29.4V Li-ion: 28.4V |
| Charge voltage 'float' | Normal: 27.6V High: 27.6V Li-ion: 27.0V |
| Charge voltage ‘storage’ | Normal: 26.4V High: 26.4V Li-ion: 27.0V |
| Charge current, normal mode | 12A |
| Charge current, Low | 4A |
| Charge algorithm | 5-stage adaptive |
| Can be used as power supply | yes |
| Protection | Battery reverse polarity (fuse) Output short circuit Over temperature |
| Operating temp. range | -30°C to +60°C (full rated output up to 40°C) Derate 3% per °C above 40°C |
| Humidity | Up to 100% |
| Start interrupt option (Si) | Short circuit proof, current limit 0.5 A Output voltage: max one volt lower than main output |
| Enclosure | |
| Material & Colour | aluminium (blue RAL 5012) |
| Battery-connection | Black and red cable of 1.5 meter |
| 230 V AC-connection | Cable of 1.5 meter with AS/NZS 3112 compliant plug |
| Protection category | IP67 |
| Weight (kg) | 2.4 |
| Dimensions (h x w x d in mm) | 99 x 219 x 65 |
| Standards | |
| Safety | EN 60335-1, EN 60335-2-29 |
| Emission Immunity | EN 55014-1, EN 61000-6-3, EN 61000-3-2 |
| Automotive Directive | EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3 |
