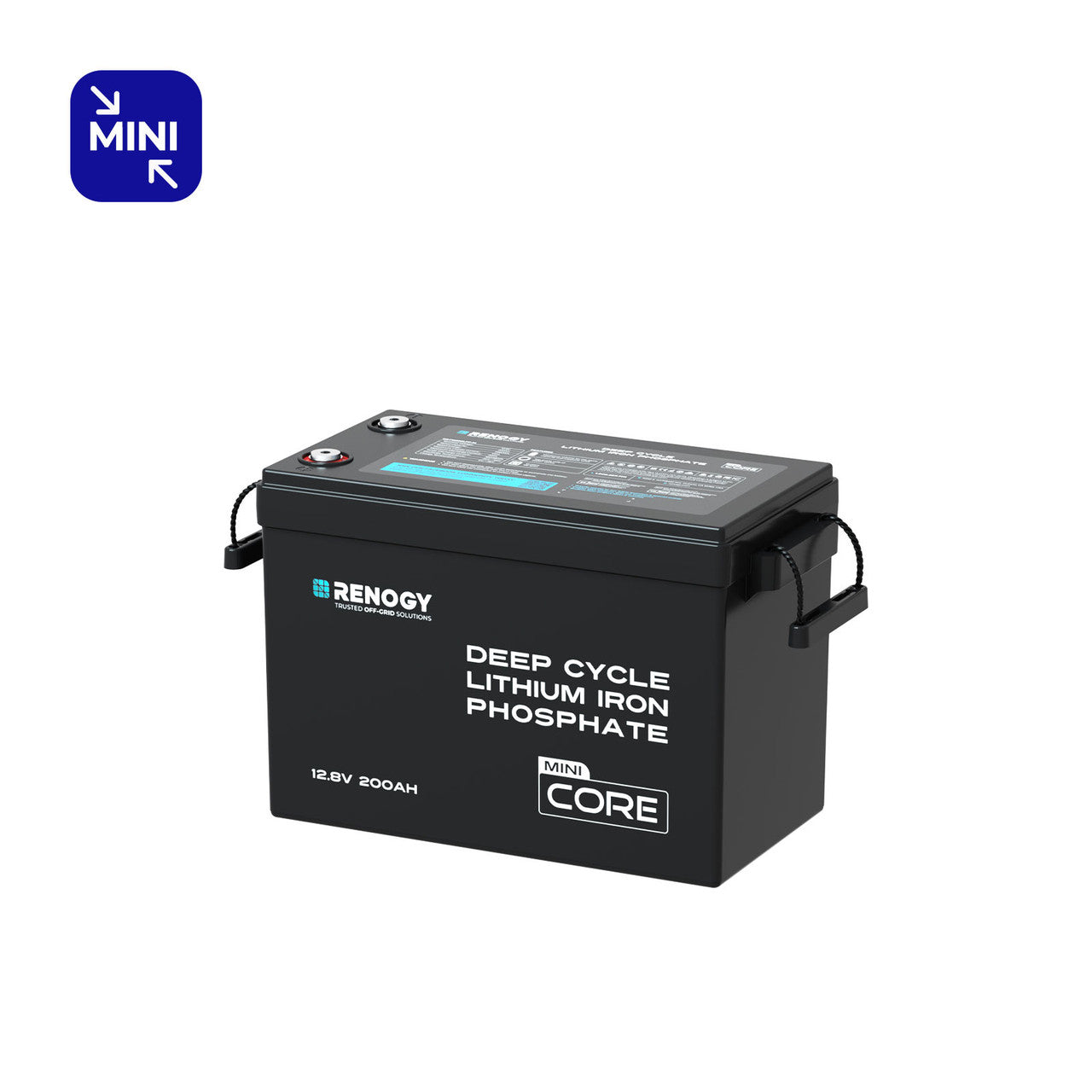

Core Mini - 12.8V 200Ah LiFePO4 Battery w/ Low-Temperature Protection

Your Price:
$830.00
Add to wishlist
Checkout Secure

Great reasons to buy from us:

  • Image of Australian Support

    Local Support

    Australian Support
  • Image of Shipped Within 24 Hours

    Orders Shipped

    Shipped Within 24 Hours
  • Image of Save In Created Packs

    Save In Bulk

    Save In Created Packs
  • Image of Free shipping (when you spend over $500* Excludes bulky items)

    Free shipping

    Free shipping (when you spend over $500* Excludes bulky items)

Core Mini - 12.8V 200Ah



  • · Smaller than ever! 1/3 smaller than 12V 200Ah lead-acid.
  • · A 200A BMS, more robust than a 100A. Low-temp cut-off (charge & discharge).
  • · IP65 waterproof & vibration-resistant for enhanced outdoor performance.
  • · Certified by FCC, UN38.3, ROHS, UKCA and more. 5-year warranty.

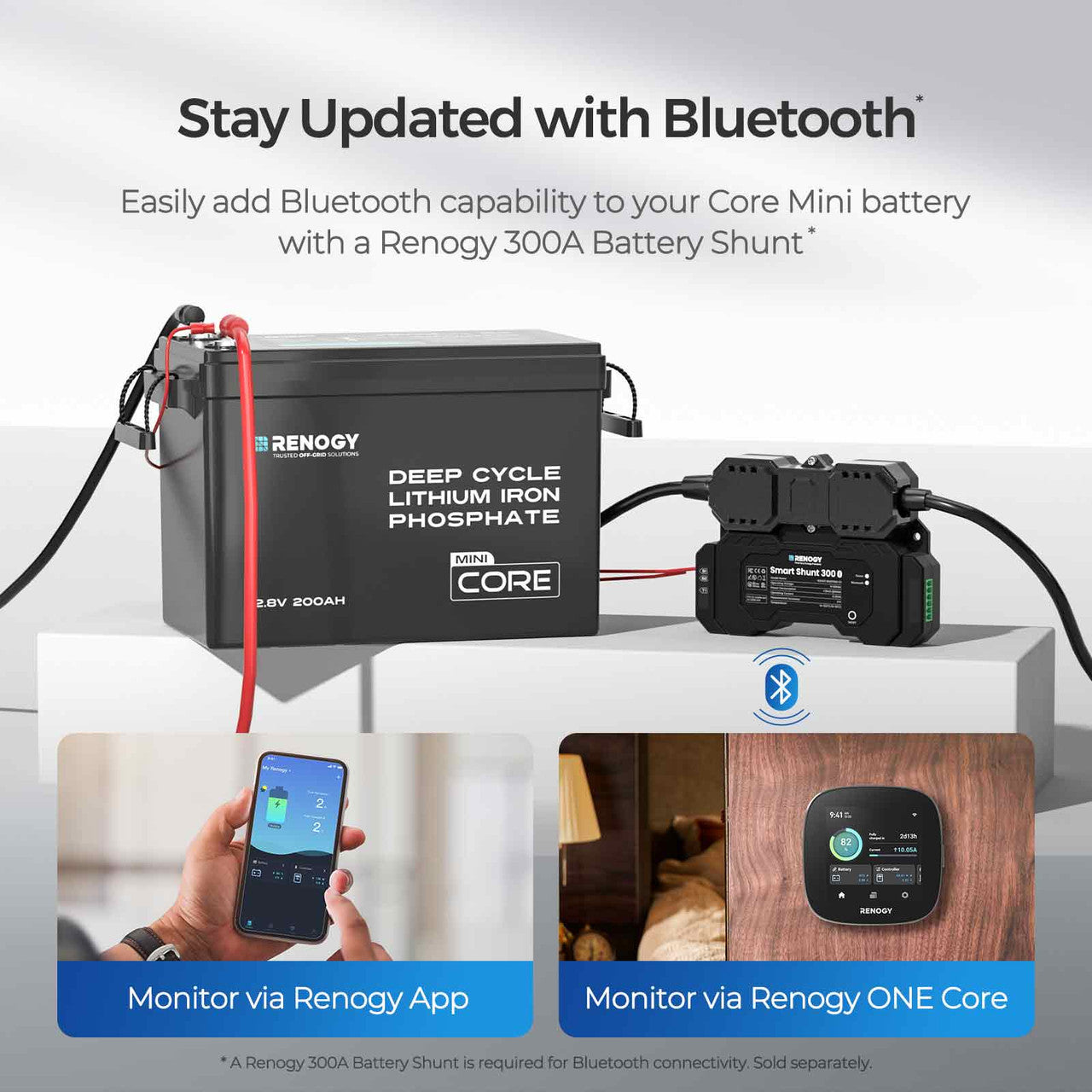

  • · Works with a Renogy 300A Battery Shunt for Remote Monitoring



Smaller, Sleeker, Still Renogy Strong.
Power up with compact confidence! The Renogy 12V 200Ah Core Mini LiFePO4 Battery is 21% smaller than its counterparts while maintaining a robust 200A BMS plus a low-temperature cut-off for enhanced protection. Perfect for both travel and home use, it’s the ideal solution for versatile power demands.

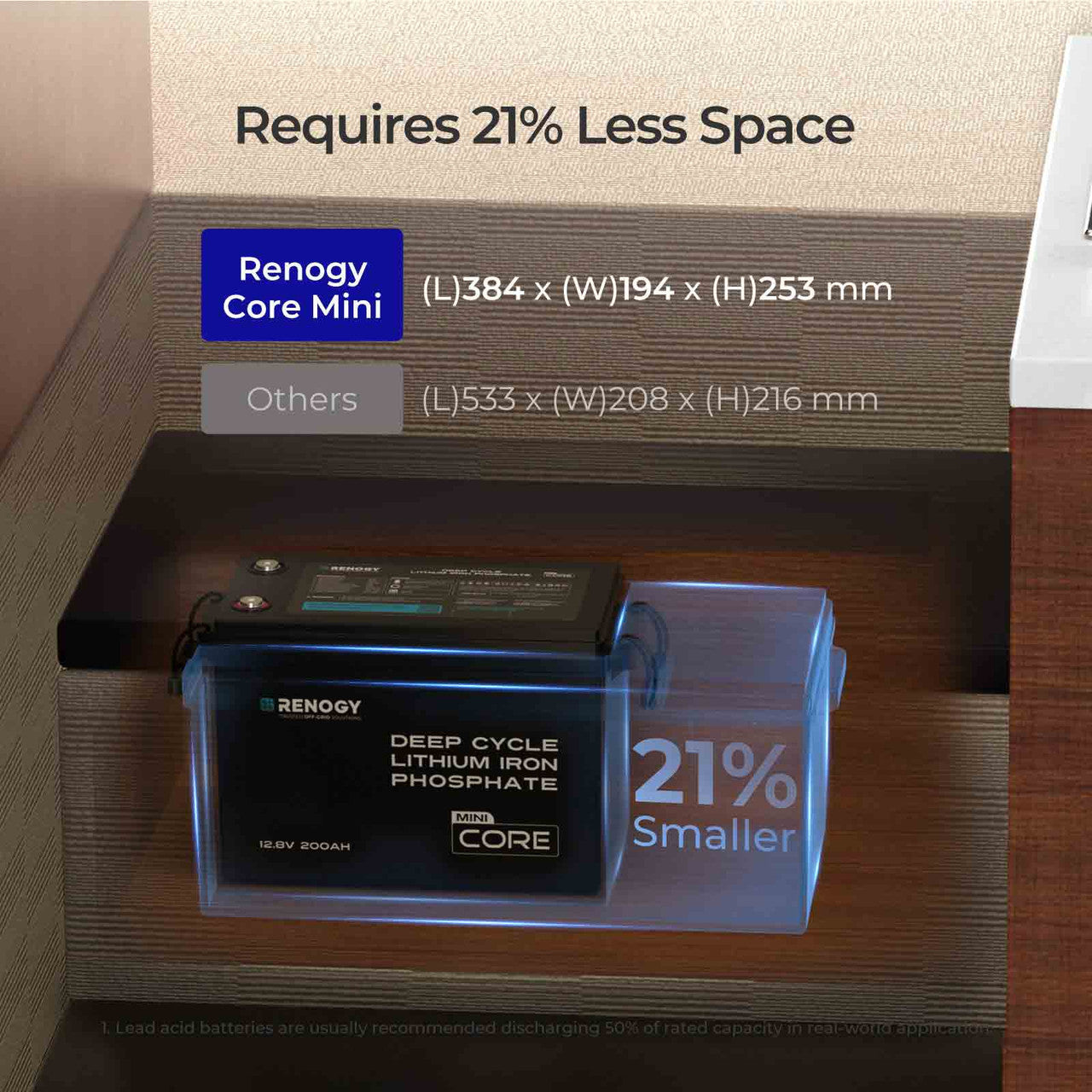

21% Smaller Than Its Counterparts
This battery's compact and sleek design saves space, frees up room for easier connections and maintenance, and fits in various battery boxes, including 8D and 4D sizes.

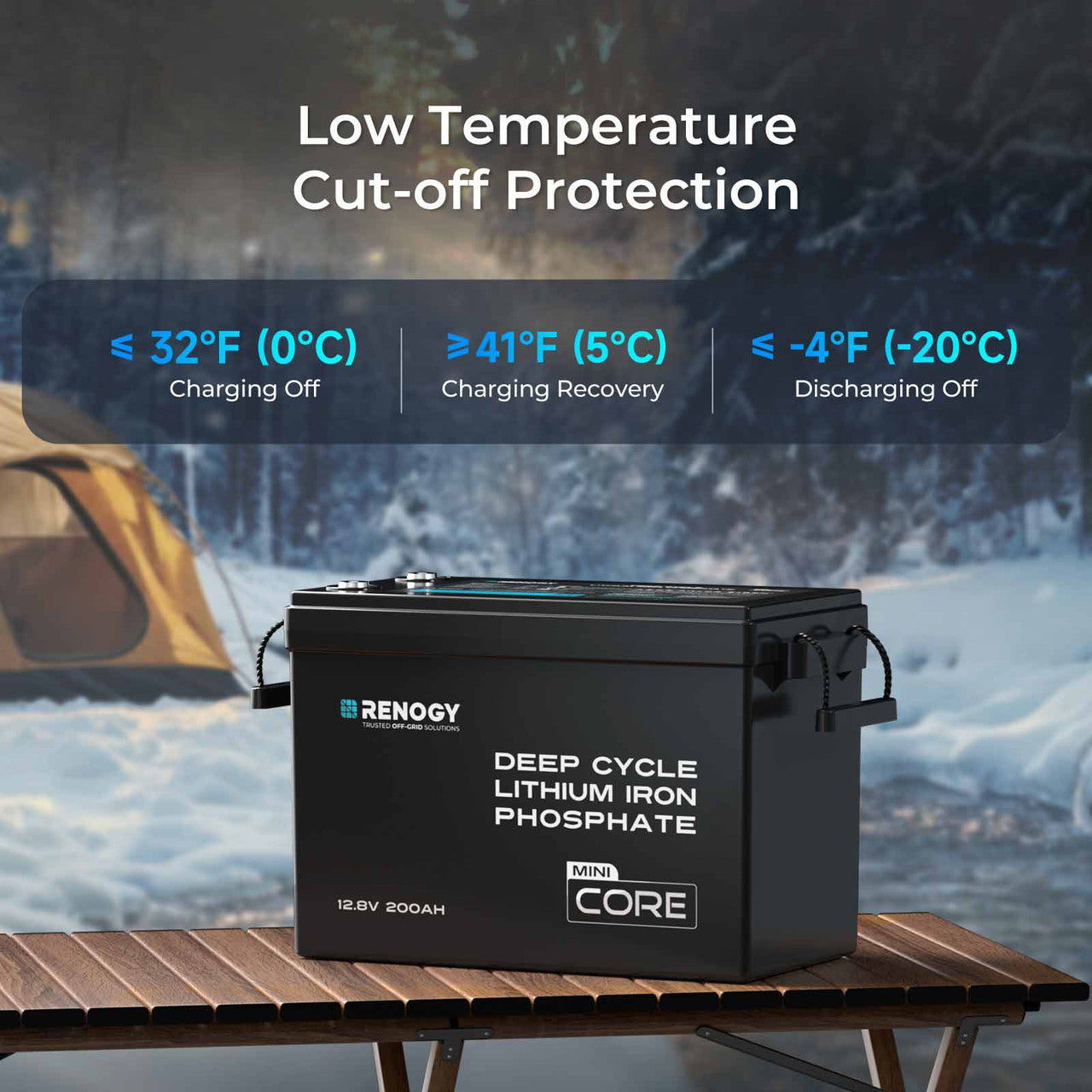

Hands-Free Low-Temp Cut-Off
The built-in BMS with an automatic low-temperature cut-off means you don't have to hover around your lithium battery, manually shutting it down. Stay relaxed and cozy during winter travels while your battery handles itself, letting you focus on the adventure.

Peak Power Output
Capable of discharging up to 380A within 10 seconds, this portable power beast can smoothly pump up energy-demanding appliances like microwaves that require a high start current.

Vibration-Resistant Design
Metal cell spacers prevent damage in rough terrain and choppy waters.

Tested & Trusted Power
Backed by rigorous testing & certifications including UL, FCC, and CE, this mini-sized 12.8V 200Ah LiFePO4 Battery delivers unmatched reliability and is ready for a wide range of uses.
Specifications
Rated Capacity (0.5C, 25°C)
200Ah
Nominal Voltage
12.8V
Energy
1280Wh
Cycle Life (0.5C/1C, 25℃)
5000 Cycles (80% DOD, 80% EOL)


Discharging Parameters
Maximum Continuous Discharge Current
200A
Peak Discharge Current
380A@10s
Charging Parameters
Voltage Range
10V to 14.6V
Maximum Continuous Charge Current
100A

Temperature Parameters
Operation Temperature Range
Charge: 32°F to 131°F (0°C to 55°C)
Operation Temperature Range
Discharge: -4°F to 149°F (-20°C to 65°C)
Storage Temperature Range
-4°F to 140°F (-20°C to 60°C)
Operation Relative Humidity
5% to 95%
Mechanical Specifications
Dimension (L x W x H)
15.12×7.64×9.96 in/384×194×253 mm
Weight
42.44 lbs / 19.25 kg
Terminal Bolt Size
M8×1.25×12 mm & M8×1.25×16 mm
Protection Rating
IP65
Certifications

MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, and UKCA
Warranty

5-year material warranty
