Sunman eArc 430W Flexible Solar Panel Slim Version - Compact and Efficient Mono-PERC Solar Panels
Superior solar technology with the newly improved, compact Mono-PERC solar panels. These lightweight yet robust panels are perfect for various applications, including caravans, motorhomes, yachts, trains, and buses.
Key Features:
- Lightweight and durable construction with cutting-edge technology
- Highly efficient monocrystalline cells for optimal energy production

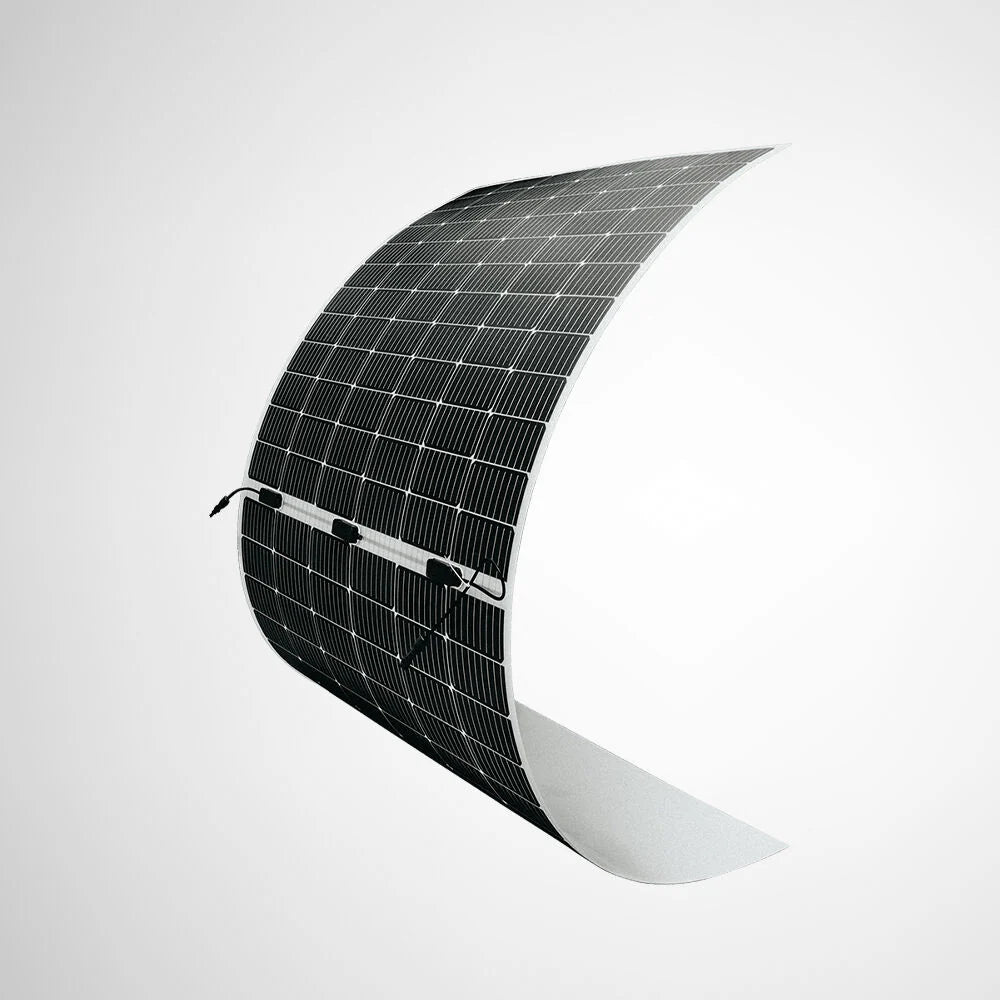

- Flexible design for easy installation on various surfaces
- Endorsed by the Clean Energy Finance Corporation and Australian Renewable Energy Agency
- CEC-approved for residential and commercial use
- 10-year product warranty for buildings and 5 years for mobile applications
- Please Note: Swirl lines may be visible on the front-sheet when viewed in person. These slight indents lines are a natural result of the manufacturing process, specifically how the rollers apply materials, and are present on all eArc models.
Crafted using a patent-pending composite material akin to airplane windows, Sunman solar panels offer unmatched durability. Approved by the Clean Energy Council for residential use, these panels are tough without the need for a heavy, rigid frame or glass. Explore the 'About Sunman' tab for more details.

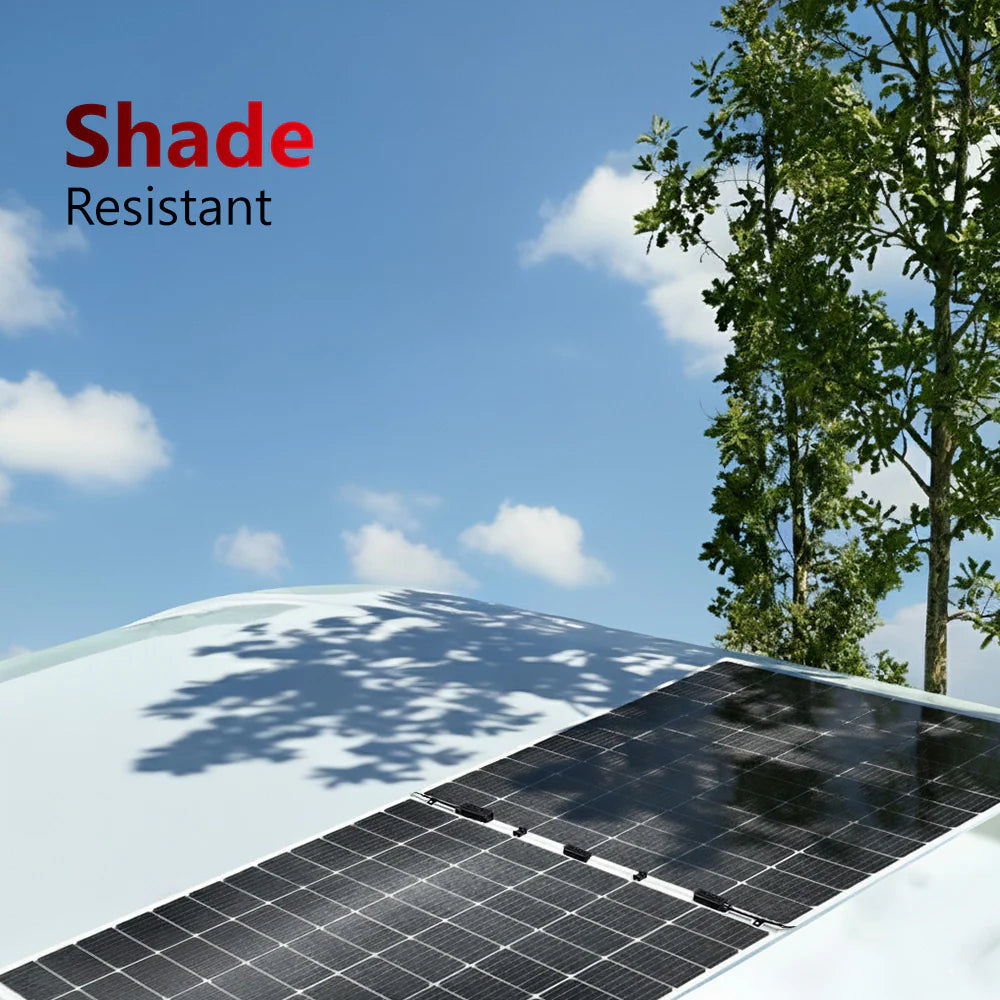

Half-Cut Shade Resistant

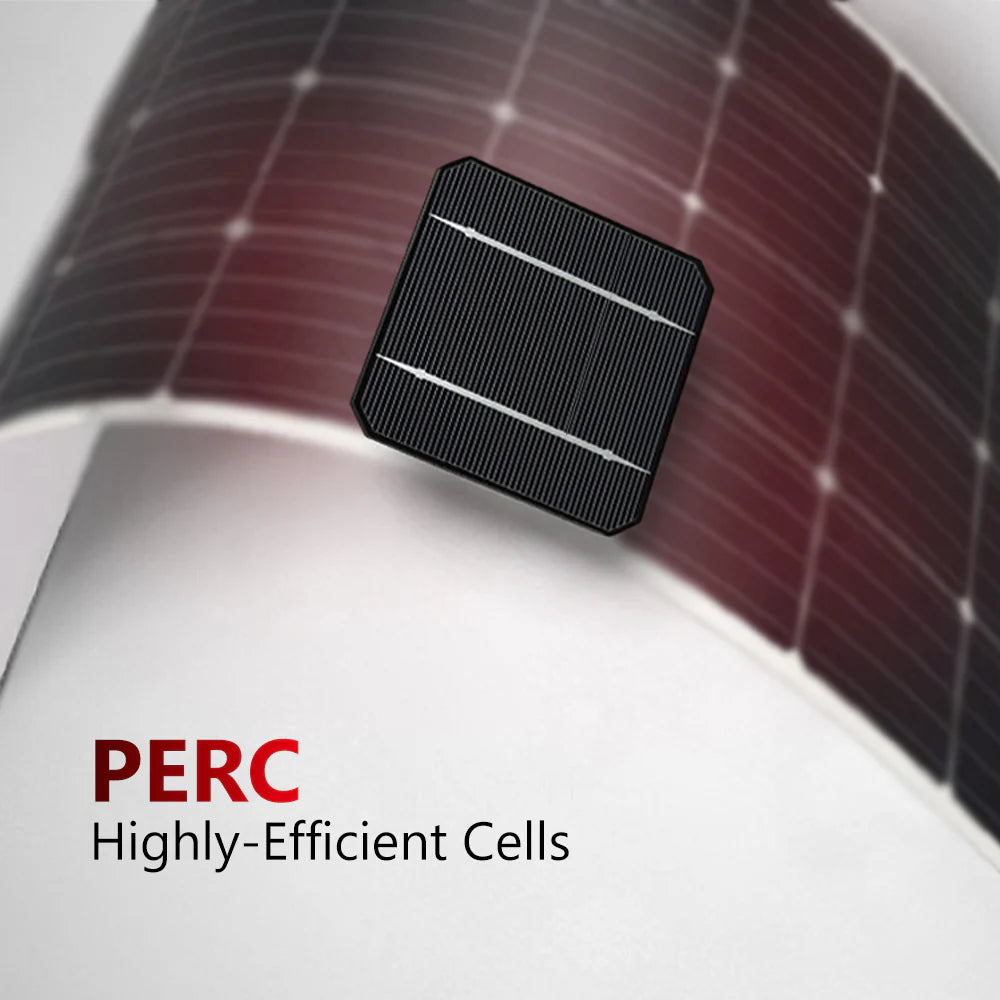

New Half cut design using the latest M6 monocrystalline passivated emitter rear contact (PERC) cells reduces internal resistance and creates two independent strings within the panel. Effectively reducing the effect of shading when on one side. PERC cells improve the year round performance compared to conventional cells as some of the light that hits the back of the cell is reflected back and converted to current.
24V Solar Panel for 12V and 24V Battery Systems - Efficient Charging Solution
- For 12V Battery Systems: Achieve optimal charging efficiency when paired with an MPPT solar charge controller, ensuring a seamless and effective energy transfer.
- For 24V Battery Systems: This panel can also be used effectively with an MPPT or PWM solar charge controller to charge 24V batteries.
Important Note on Open Circuit Voltage (Voc): It is crucial to be aware of the panel's Voc to ensure your charge controller can handle the voltage appropriately. Please verify that your charge controller's voltage limit is compatible with this panel's Voc to guarantee efficient and safe operation.
Optional Mounting Solutions
- Vented Gap Kit: Improves panel efficiency and reduces surface heating. Includes high bond double-sided adhesive tape and polycarbonate strips. (Height increase of approximately 15mm)
- High Bond Double-Sided Adhesive Tape: Provides a low-profile, secure bond for smooth surfaces. (2.3mmH x 12mmW x 16.5mL)
- Structural Silicone (Fix8): Can be used to adhere the panel to a surface.
Experience the difference of Sunman eArc solar panels for yourself, and join the countless satisfied customers who have made the switch to a more sustainable and efficient energy solution.
In some instances there may be slight manufacturing changes between batches. If you are adding to an existing array, please check with the sales team to review any variances.
Specifications
| Model | SMF430F-6X24UW |
| Solar cells | 144 (6x24) |

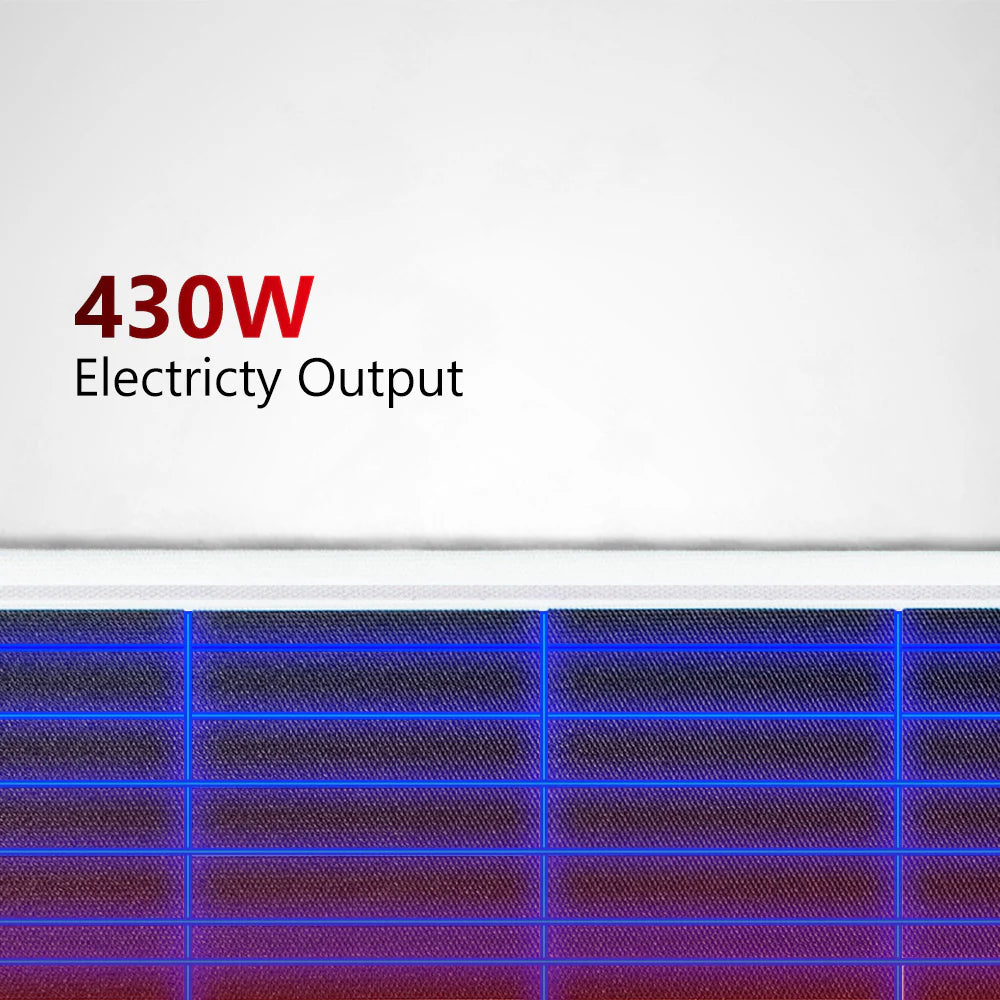

| Maximum Power (Pmax) | 430 |
| Maximum Power Voltage (Vmp) | 42.0 |
| Maximum Power Current (Imp) | 10.24 |
| Open-circuit Voltage (Voc) | 49.8 |
| Short-circuit Current (Isc) | 10.74 |
| Operating Temperature (°C) | -40 °C to 85 °C |
| Maximum System Voltage | 1000 V DC (IEC) |
| Maximum Series Fuse Rating | 20 A |
| Application Class | Class A |
| Power Tolerance | 0/+5 W |
| Backsheet | White |
| Junction box | IP 68 rated (each j-box has one by-pass diode) |
| Output Cables | Photovoltaic technology cable 4.0 mm2, (+)150 / (-)450 mm |
| Connector | MC4 compatible |
| SKU: | eASMF430F-6X24UW |
| Model #: | SMF430F-6X24UW |
| MPN: | SMF430F-6X24UW |
