Renogy REGO 12V/24V/36V/48V 30A MPPT Solar Charge Controller BT Inbuilt

Renogy REGO 12V/24V/36V/48V 30A MPPT Solar Charge Controller BT Inbuilt

SKU: RCC30REGO-AU

Your Price:

$399.00

Great reasons to buy from us:

Local Support
Australian Support
Orders Shipped
Shipped Within 24 Hours
Save In Bulk
Save In Created Packs
Free shipping
Free shipping (when you spend over $500* Excludes bulky items)

150V PV input & compatible with 12V/24V/36V/48V systems
Error-proof connections with Amphenol connectors
Built-in Bluetooth and RV-C monitoring
13 safety protections w/ low temp protection
FCC, RoHS, CE, RCM, UL1741 certified, with a 5-year warranty

RENOGY REGO 12V/24V/36V/48V 30A MPPT Solar Charge Controller

The REGO 12V/24V/36V/48V 30A MPPT Solar Charge Controller delivers exceptional performance with up to 99.99% tracking efficiency, 97% charging efficiency, and built-in Bluetooth for seamless monitoring and control.

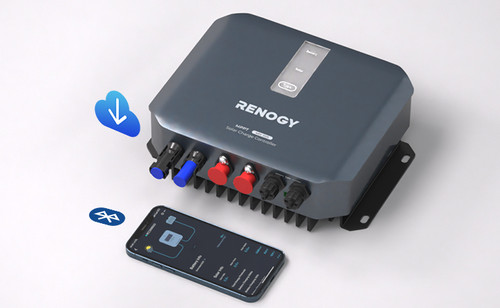

Dual Monitoring, Simple yet Efficient

REGO 30A Controller supports RV-C and Bluetooth dual monitoring, with precise real-time clock function recording daily power generation, and access to a full year's historical data.

Unleashing the Potential for High-Power DIY Systems

By supporting up to 150V input voltage, the controller enables versatile series and parallel configurations of solar modules, broadening your DIY options.

Seamless Installation

Effortless plug-and-play connections with Amphenol and IP67 Solar connectors ensure simplified operation and quick installation, with no risk of loosening or slipping.

Unmatched Stability in Extreme Conditions

Maintains full output current at 45°C / 113℉ and 3000m altitude, ensuring reliable operation and superior heat dissipation.

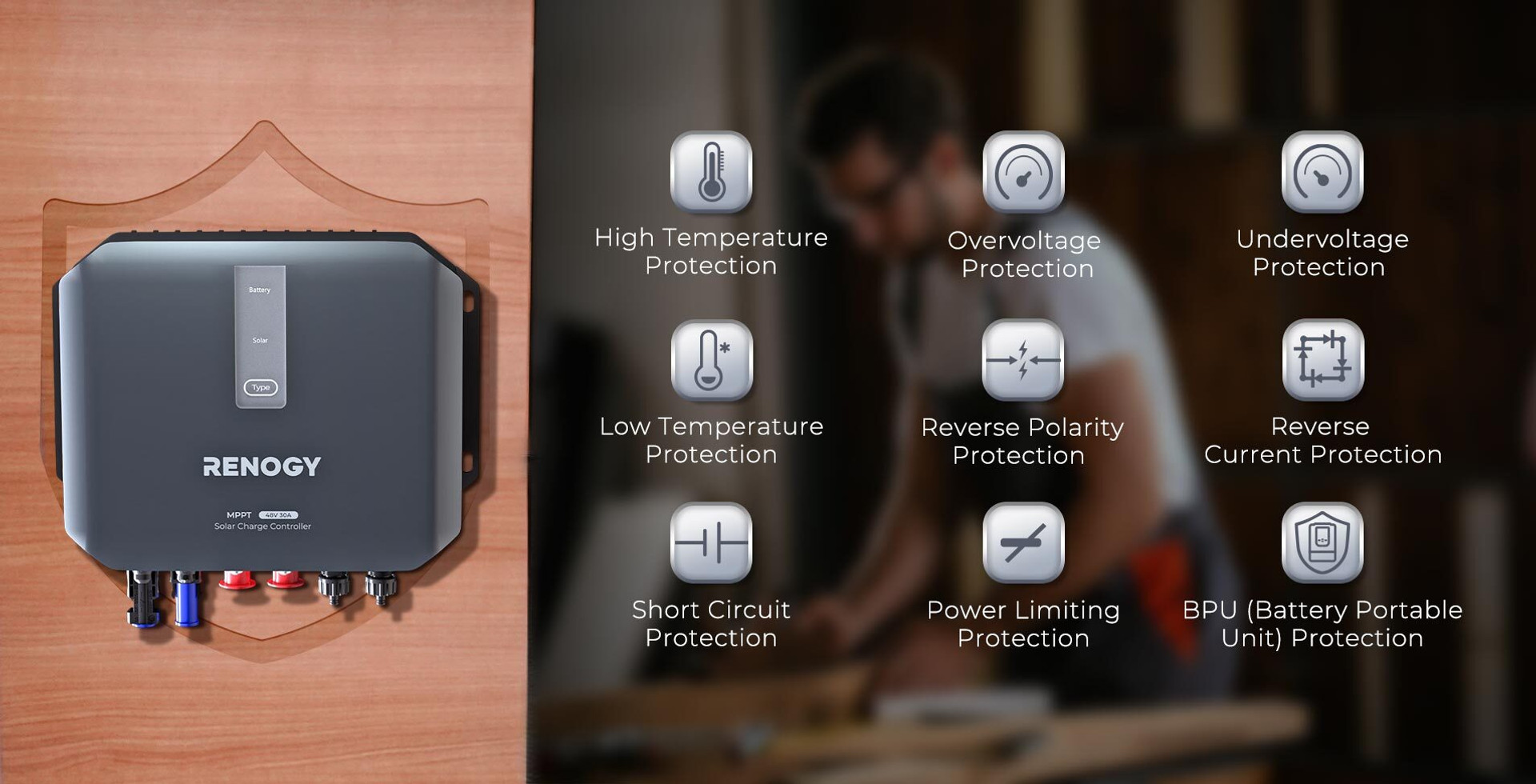

Comprehensive Protection for Your Energy System

Integrated with 13 protection features, it ensures system safety and efficiency. It offers customizable settings for optimal performance under various conditions.

Versatile Voltage Compatibility

The REGO 30A Controller is compatible with 12V to 48V systems, automatically detecting battery voltage, making it perfect for RVs, households, and other off-grid applications.

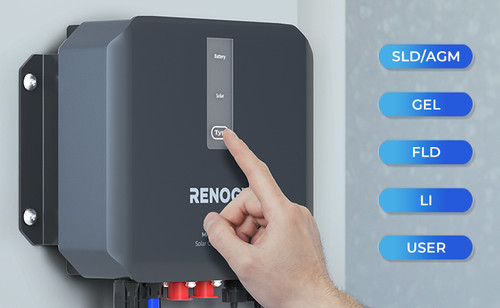

Effortless Battery Type Selection

The battery type can be easily set to SLD/AGM, GEL, FLD, LI, or USER mode using the Battery Type Setting button, and you can also adjust this setting through the DC HOME APP.

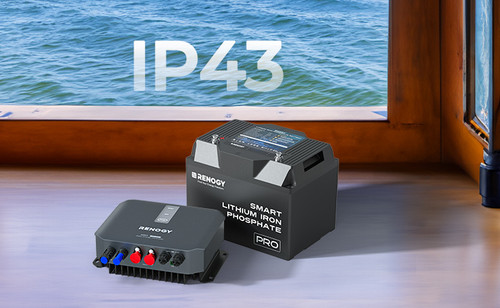

IP43 for Humid Environments

The integrated design enhances the protection level to IP43, making it suitable for use in various scenarios.

Over-the-Air Update

With built-in OTA functionality, you can easily perform remote software upgrades. It also includes a rollback mechanism for secure usage.

RENOGY REGO 12V/24V/36V/48V 30A MPPT Solar Charge Controller

General Data

Grounding: Common Negative

Communication: RS485；RENOGY CAN

Operating Temperature: -31°F to 149°F / -35°C to 65°C

Storage Temperature: -31°F to 176°F / -35°C to 80°C

Humidity: 0%~95% RH

Cooling: Heat Sink

Enclosure Rating: IP43

Dimensions (LxWxH): 9.84 x 7.40 x 3.17 in / 250 x 188 x 80 mm (Solar connector length not included); 9.84×8.58 X 3.17 in / 250 x 218 x 80 mm (Solar connector length included)

Weight: 2.7 kg /5.95 lb

Regulatory and Safety Specifications: FCC, RoHS, CE, SAA, RCM, and UL 1741

Charger Data

Rated Battery Input Voltage: Non-Lithium :12VDC / 24 VDC / 36 VDC /48 VDC (Auto Recognition)

Battery Operating Voltage Range: 8V to 64V

Rated Charge Current: 30A

Maximum Solar Input Power: 440 W (12V Battery);880W (24V Battery);1314 W (36V Battery);1700W (48V Battery)

Maximum Solar Input Voltage (Voc): 150VDC

Power Consumption: ＜0.57W (12V Battery);＜0.67W (24V Battery);＜0.97W (36V Battery);＜1.34W (48V Battery)

MPPT Tracking Efficiency: >99%

Conversion Efficiency: ＞97%

Temperature Compensation: 3mV / ℃ / 2V (Non-Lithium); 0mV / ℃ / 2V, no compensation (Lithium)

Charger Algorithm: 3-stage Lead Acid, Bulk, Boost, Float, Equalize*; 2-Stage Lithium, Bulk, Boost

Charger Preset: AGM/Gel/SLD/FLD/LI (four cell groups) and User Mode

WARRANTY INFORMATION

Accessories: 5-year material warranty

Manual Download - Click Here
