Exotronic 24V Ikara Series Pre-wired Victron Board - Portrait - 3000VA + Mains 70A + Solar 50A + DC-DC 30A + Cerbo GX (Copy) (Copy)

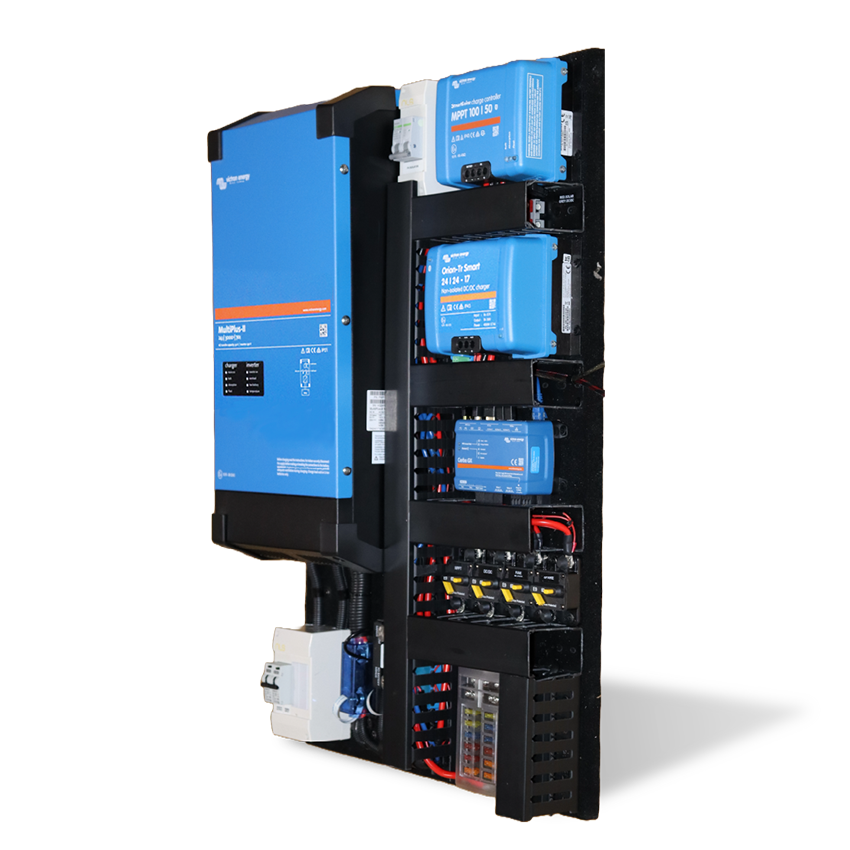

Introducing the Ikara Series Pre-Wired Victron Energy Power Board for Van Conversions - Portrait - 24V

3000VA + Mains 70A + Solar 50A + DC-DC 30A + Cerbo GX

Upgrade your van conversion with our high-performance Ikara Series Pre-Wired Victron Energy Power Board – 24V. Engineered for efficiency, reliability, and ease of installation, this premium all-in-one power solution eliminates the complexities of a custom electrical setup, saving you time, effort, and costs.

Optimal Flexibility & Placement

Perfectly designed for wall or floor mounting, it can be conveniently placed under a van bed or bench seat for maximum space utilization.

What’s Included in this Comprehensive Package?

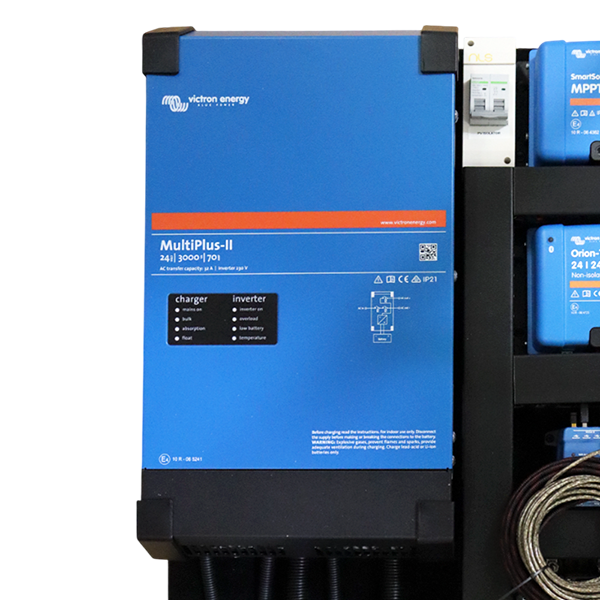

• Victron 3000VA MultiPlus-II Inverter (24V)

  • Power virtually any 10A appliance with the robust 3000VA inverter.
  • 70A mains charger for rapid charging from the grid.
  • Automatic transfer switch for seamless transition between off-grid and on-grid power, while also charging your batteries.
  • Safety switch circuit protection for added security in both incoming and outgoing inverter circuits

• Victron 50A MPPT SmartSolar Controller (Bluetooth Enabled)

  Connect effortlessly to solar panels with a red Anderson connector for optimized solar energy harnessing. (Genuine red Anderson supplied)

• Victron 30A DC-DC Charger (Bluetooth Enabled, Non-Isolated, 24V to 24V, 12V to 24V on request)

  Compatible with smart alternators for seamless connection to the starter battery using a grey Anderson connector. (Genuine grey Anderson supplied)

• Victron 300A SmartShunt Battery Monitor

  Stay informed with real-time data on your house battery's state of charge, current in/out, voltage, and set audible alarms for low levels.

• Victron Cerbo GX

  Exercise full control over your system with adjustable current limits, relays, tank levels and temperature sensors connectivity.

  Including 5m of cables for connectivity with GX Touch Display Screen (purchased separately).

  Ruuvi & Mopeka ready - Includes a pre-installed Bluetooth adapter so Ruuvi temperature sensors and Mopeka water and LPG tank levels can be connected (purchased separately)

• Victron Battery Protect Low Voltage Disconnect

  Disconnects the 24V loads when batteries low, the unit also has a switch port to allow you to optionally install a switch and disconnect all 24V loads when not using the system.

• Fuse Block & Circuit Breakers

  Incorporates a 12 Blade Fuse Block with Exotronic circuit breakers and cables for enhanced protection and circuit management and oversized cables for low loss performance.

• 200A MEGA Fuse and 50mm2 Double Insulated Power Cable

  For high current capacity and safety, essential for the inverter.

Expertly Pre-Wired for Your Convenience

Save time and avoid the hassle with our expertly pre-wired board. This ensures a reliable and efficient setup, helping you avoid costly mistakes and get on the road faster.

Comprehensive Documentation

Comes with a detailed board wiring diagram including example external wiring to guide you through a seamless installation process.

Shipping & Handling

Available for shipping Australia-wide. The unit is supplied on a pallet. Please note the driver will not unload, so a business address or depot must be provided. A home address is acceptable if someone will be available to unload.

Why Choose Our Pre-Wired Victron Energy Power Board?

Our solution is meticulously designed for the discerning van owner who seeks a premium, reliable, and hassle-free power system. By choosing our pre-wired board, you invest in peace of mind, knowing that every component is expertly configured for optimal performance and safety.

Customer Support

Our dedicated customer support is here to assist you with any queries or issues. We stand by the quality of our product and are committed to ensuring your complete satisfaction.

Weight: 33kg

Dimensions: 780 x 530 x 170mm
