- Compact Size of 170 x 120 x 60mm
- Wide Operational Temperature Range at -30°C to 65°C
- Inbuilt Protections such as Low & High Temperature, Over & Under voltage Protection, Short Circuit Protection, Reverse Current Protection, BPU (Battery Portable Unit) Protection, Reverse Polarity Protection, Power Limiting Protection
- Multi-Chemistry Battery Compatibility (Lithium, GEL, AGM, SLA & Flooded)
- 100V input capacity

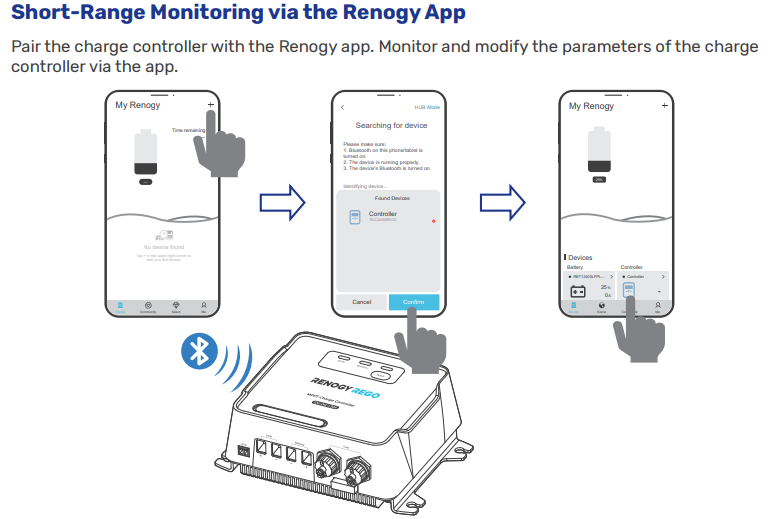

- CAN & Bluetooth connectivity
- 5 Year Warranty
Specifications:

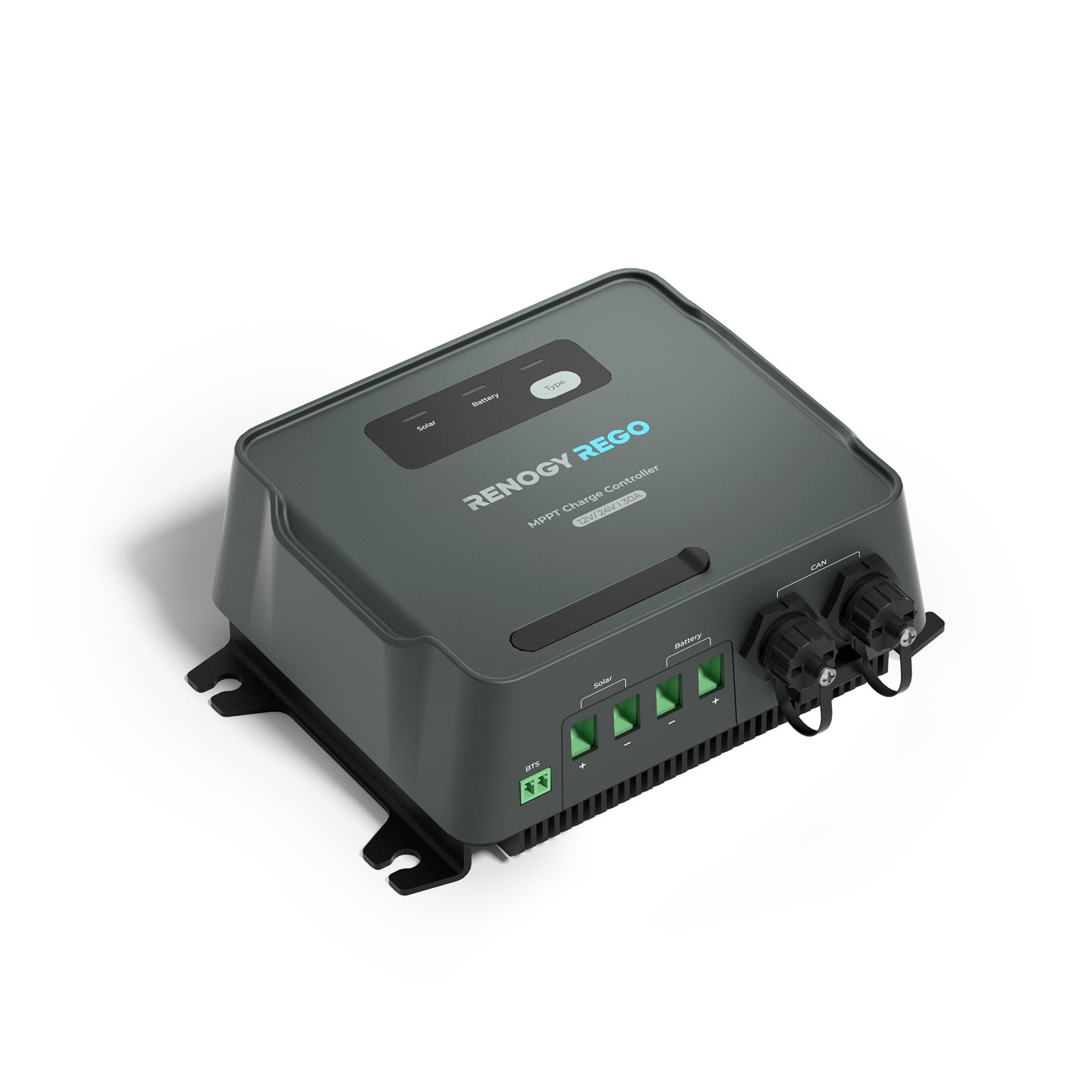

Model No. RCC2430REGO
System Voltage: 12V/24V
Power Type: DC to DC
Solar Input Voltage: 100V
Maximum Output Current Rating: 30A
Rated Max Charge Power: 450W (12V Battery) 900W (24V Battery)
Communications: CAN(RV-C), Bluetooth
Compatible Batteries: AGM, GEL, Std Lead Acid, Lithium LiFePO4, User Mode
Operating Temperature Range: -35°C to 65°C
Dimensions: 170 x 120 x 60mm
Weight: 3.6kg
Certification: FCC, RoHS, CE, SAA, RCM & UL 1741
Warranty: 5 Years
Download Manual
