- Over 91% efficiency and standby power under 10W for longer life
- Weighs 8.1 kg, compact size fits tight spaces with easy installation

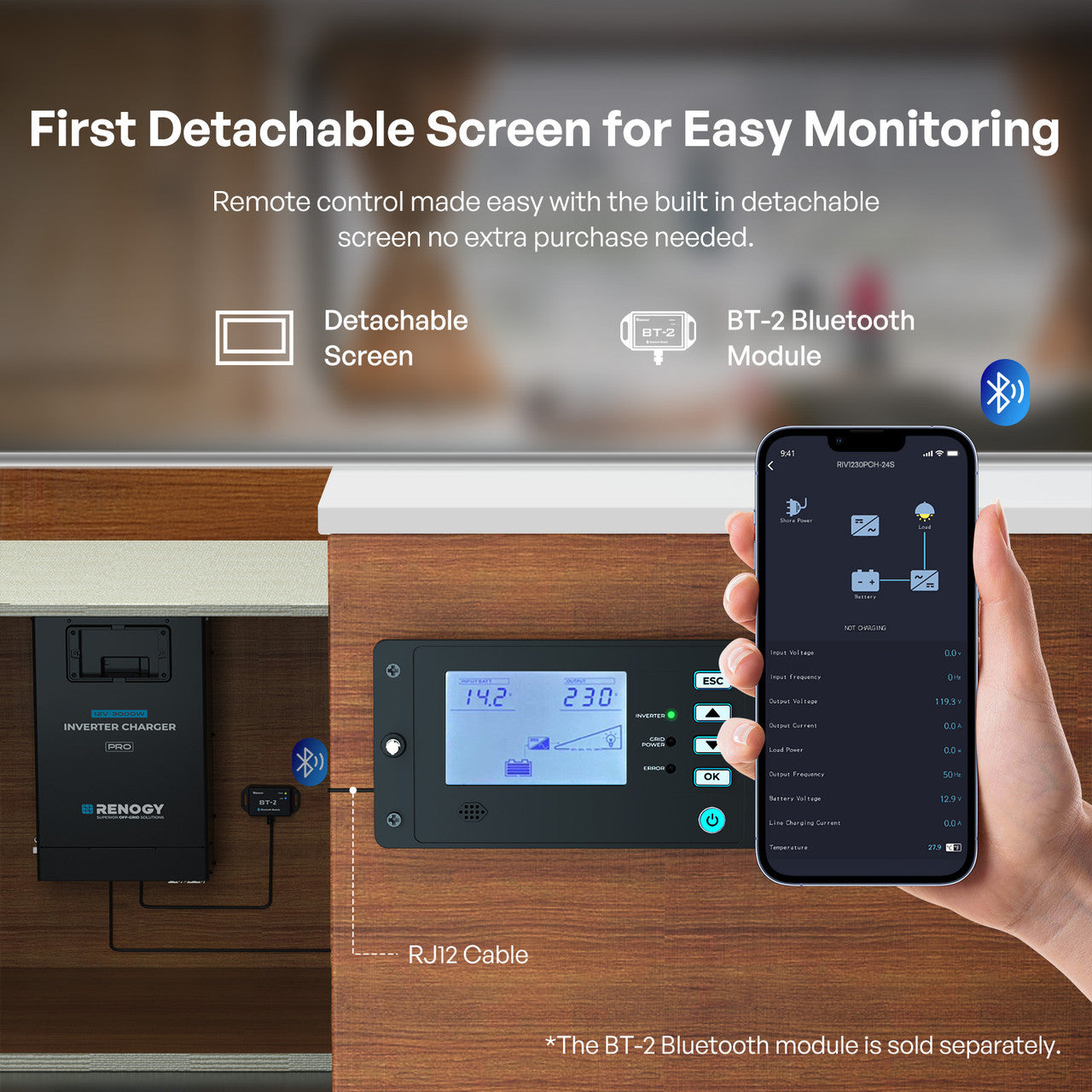

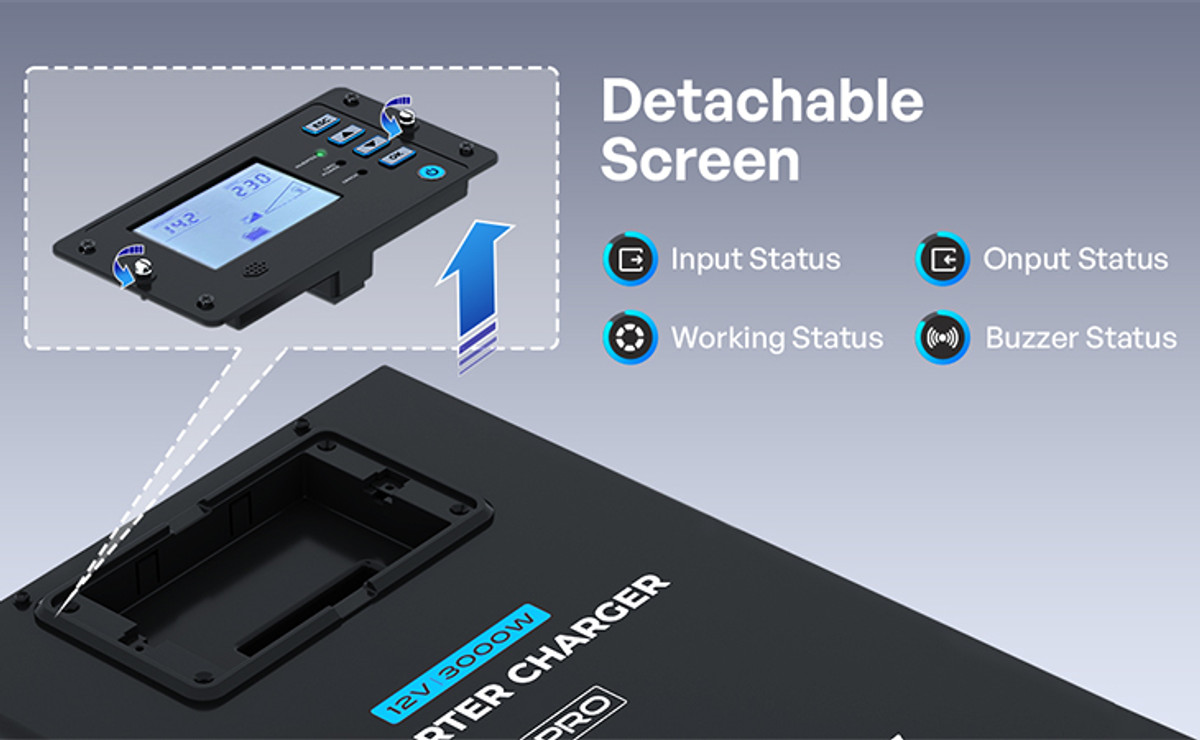

- Detachable panel and optional BT-2 module enable remote monitoring
- Built-in RCD protection ensures safety without need for extra modules

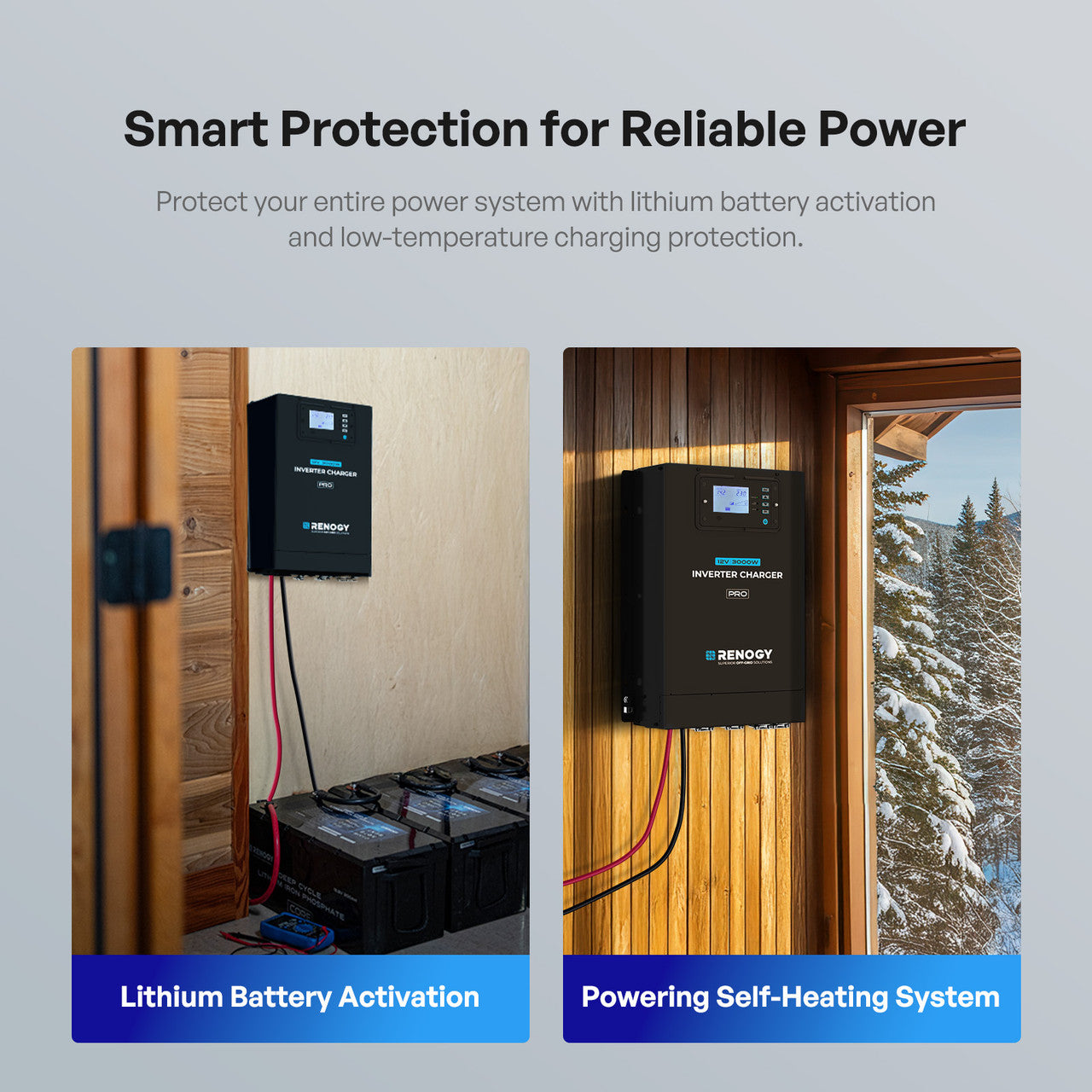

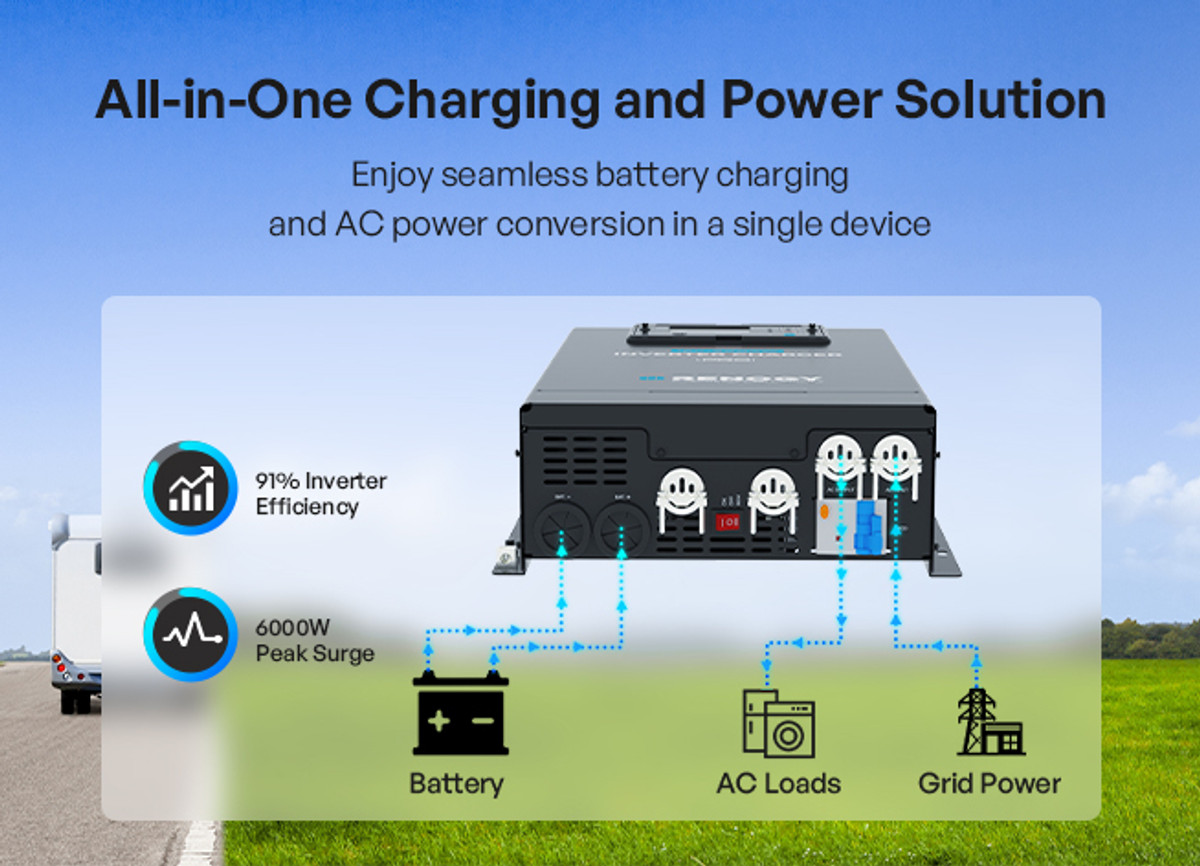

- Supports lithium, lead-acid batteries and AC input with fast switchover
Continuous Power: 3000W
Surge Power (Peak Power): 6000W
AC Output Voltage Range: 240VAC
Output Frequency (Nominal): 50/60 Hz ± 0.1Hz，default 50Hz
Output Waveform: Pure Sine Wave

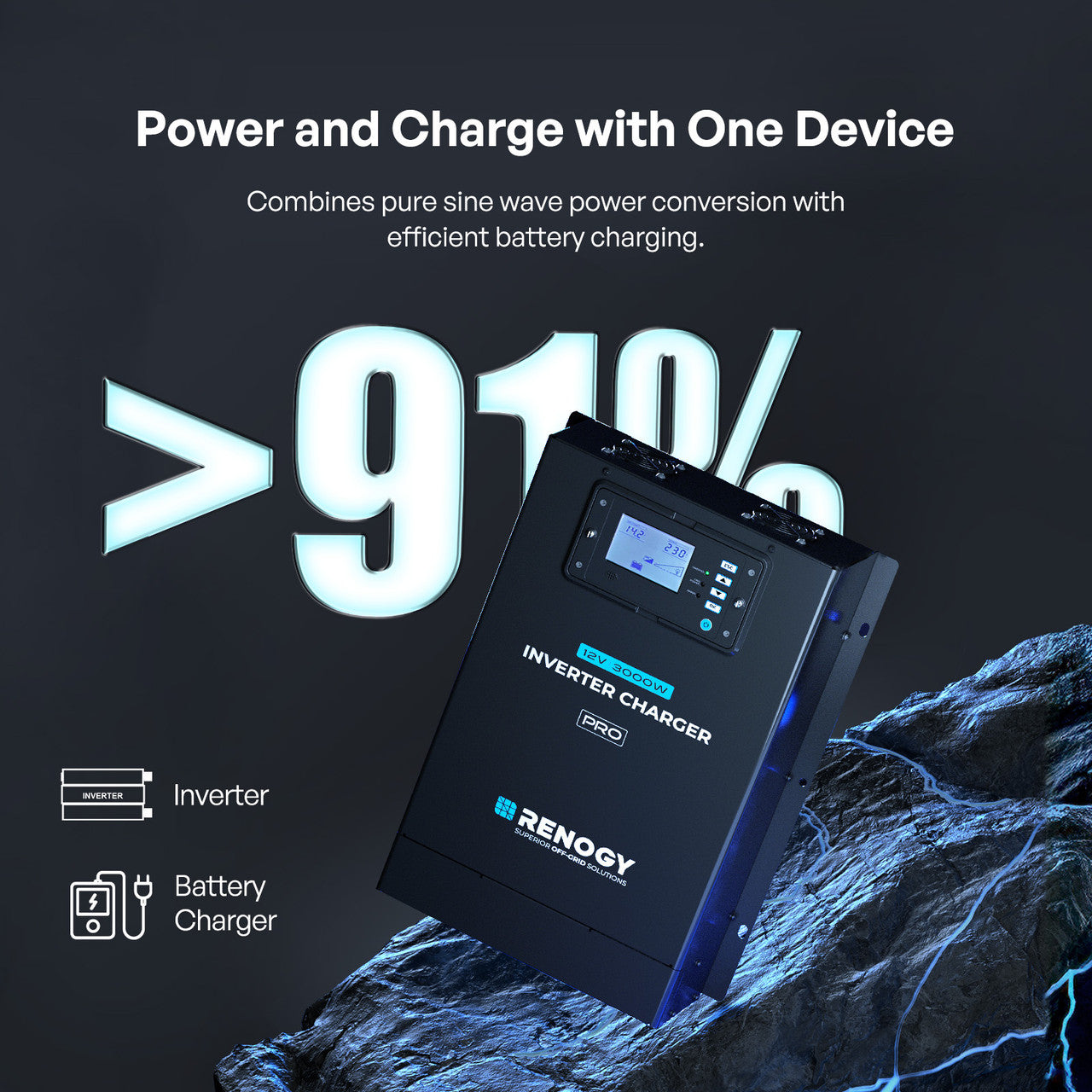

Efficiency: ＞91% peak
THD: ＜4%
DC Input Voltage: DC12V
DC Input Voltage Range: 10.5-15.5VDC

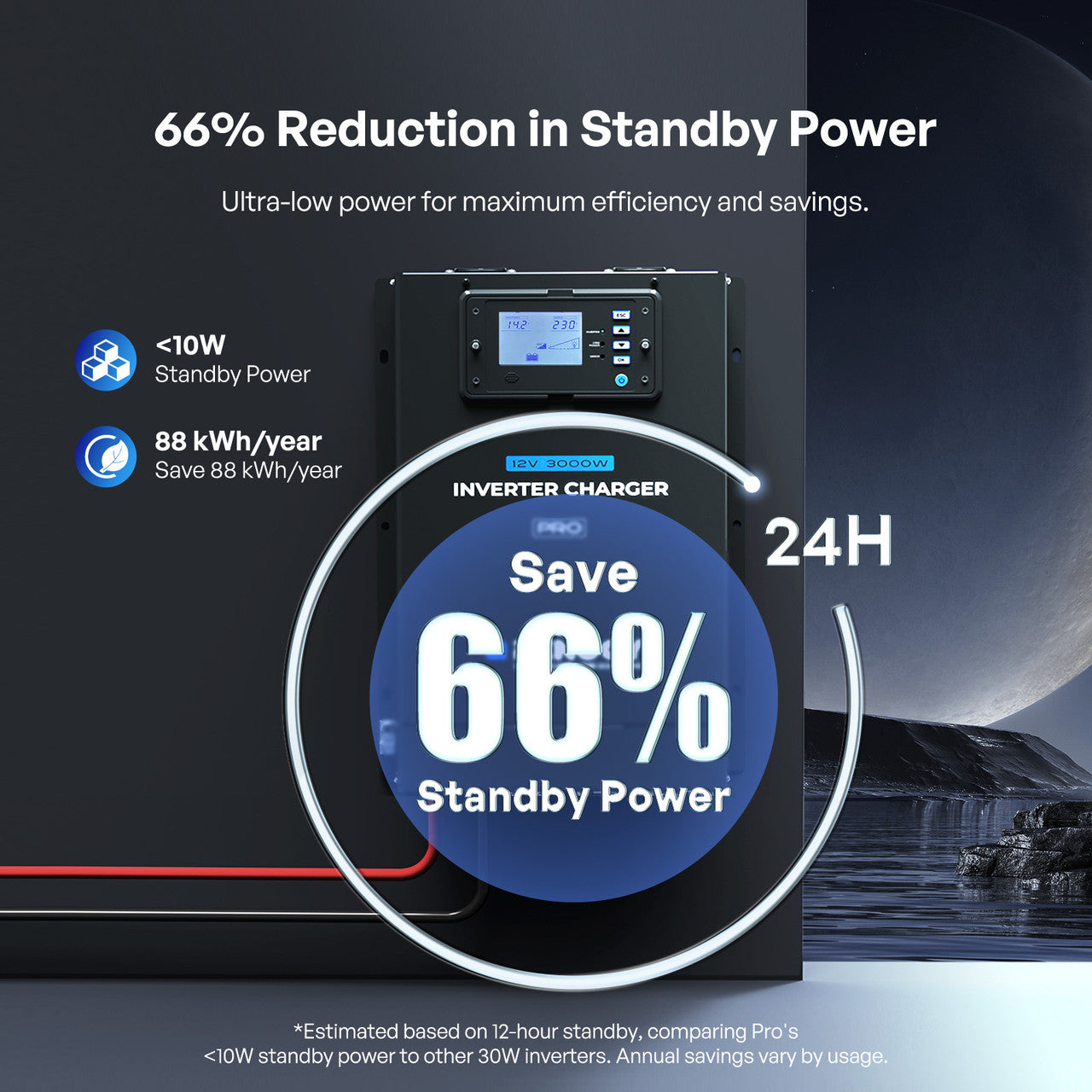

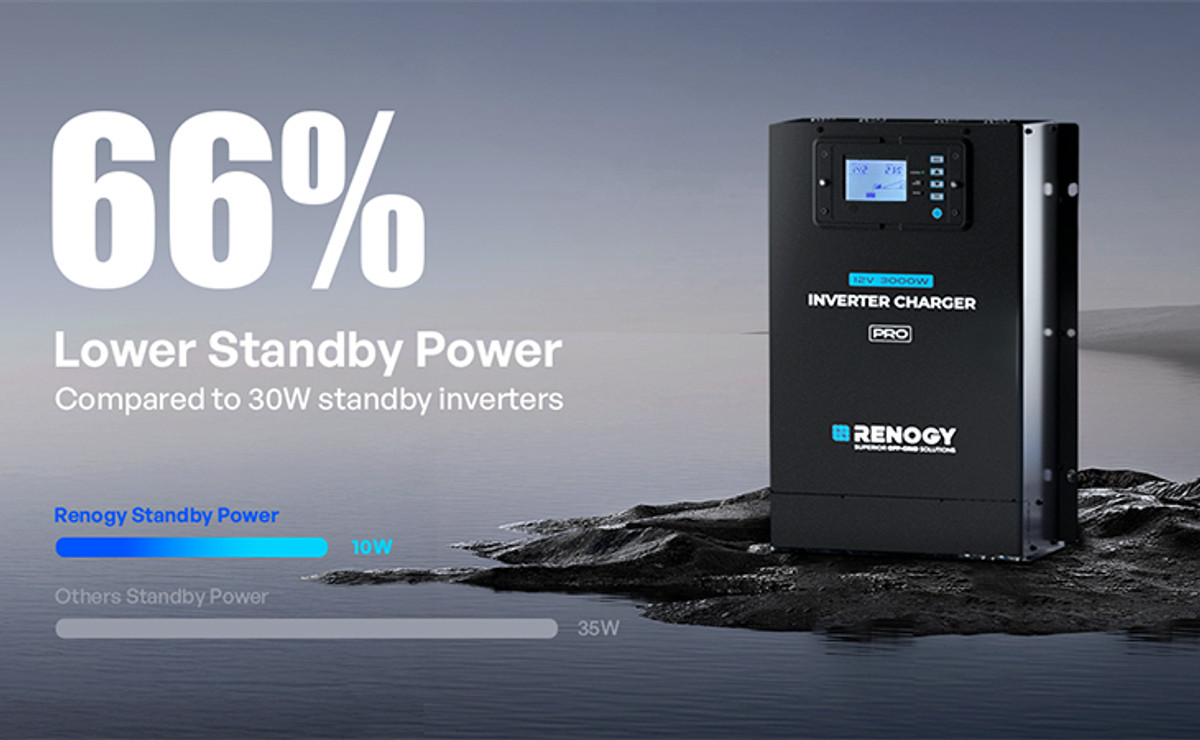

No Load Current Draw: <10W
Output Current: 5-120A Aadjustable,5A intervals
Optimal Efficiency: ＞85% Peak
Nominal Input Voltage: 187-265Vdc
Input Frenquency Range: 40Hz-70Hz
Transfer Time: Max.20ms
Transfer Rating: 16A Automatic Transfer Switch
Battery Types: GEL, AGM, SLA, FLD, CAL, LI, USER
Noise: <55dB

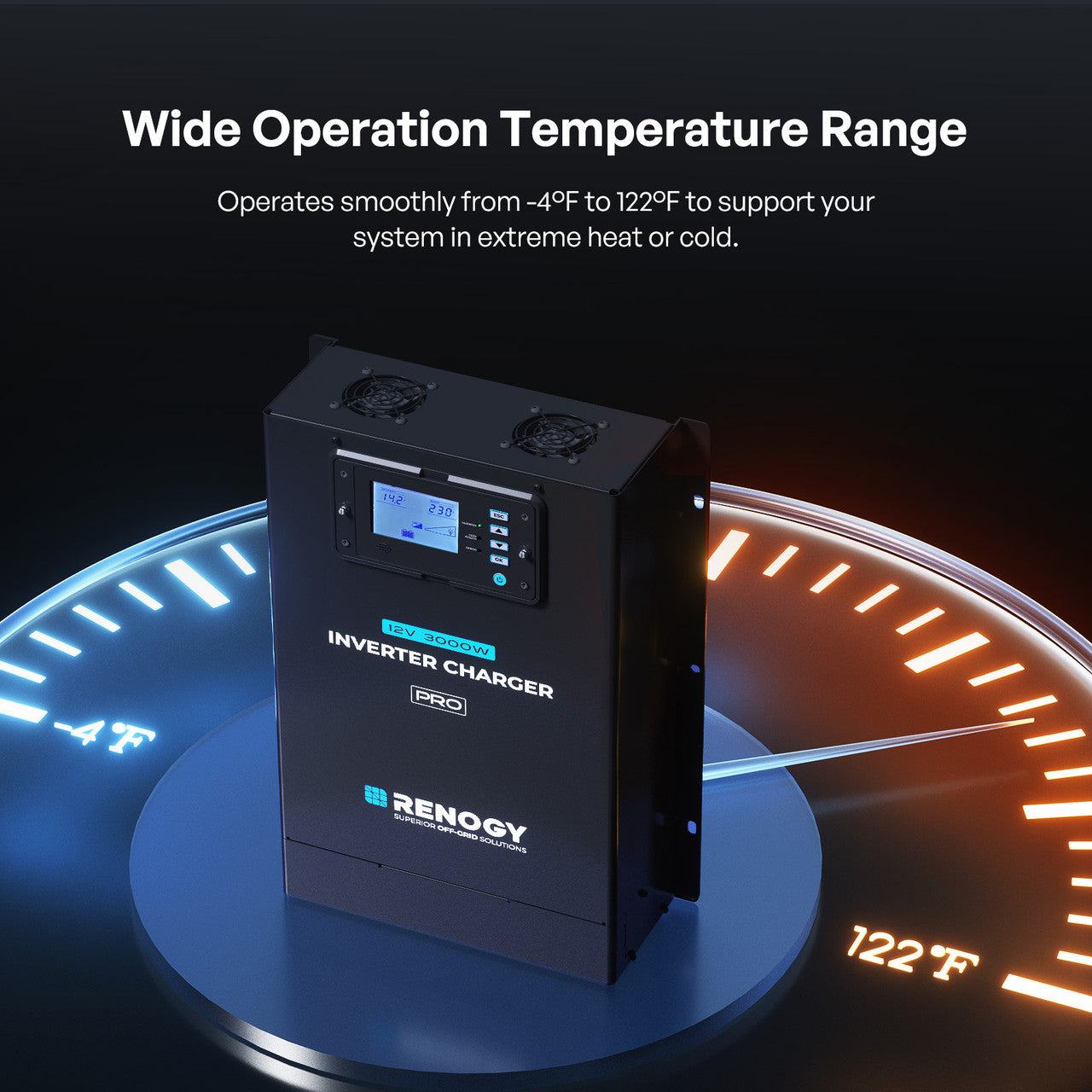

Operating Temperature: -20-50℃/-4-122°F (Output power degrading at 86°F/30°C or higher)

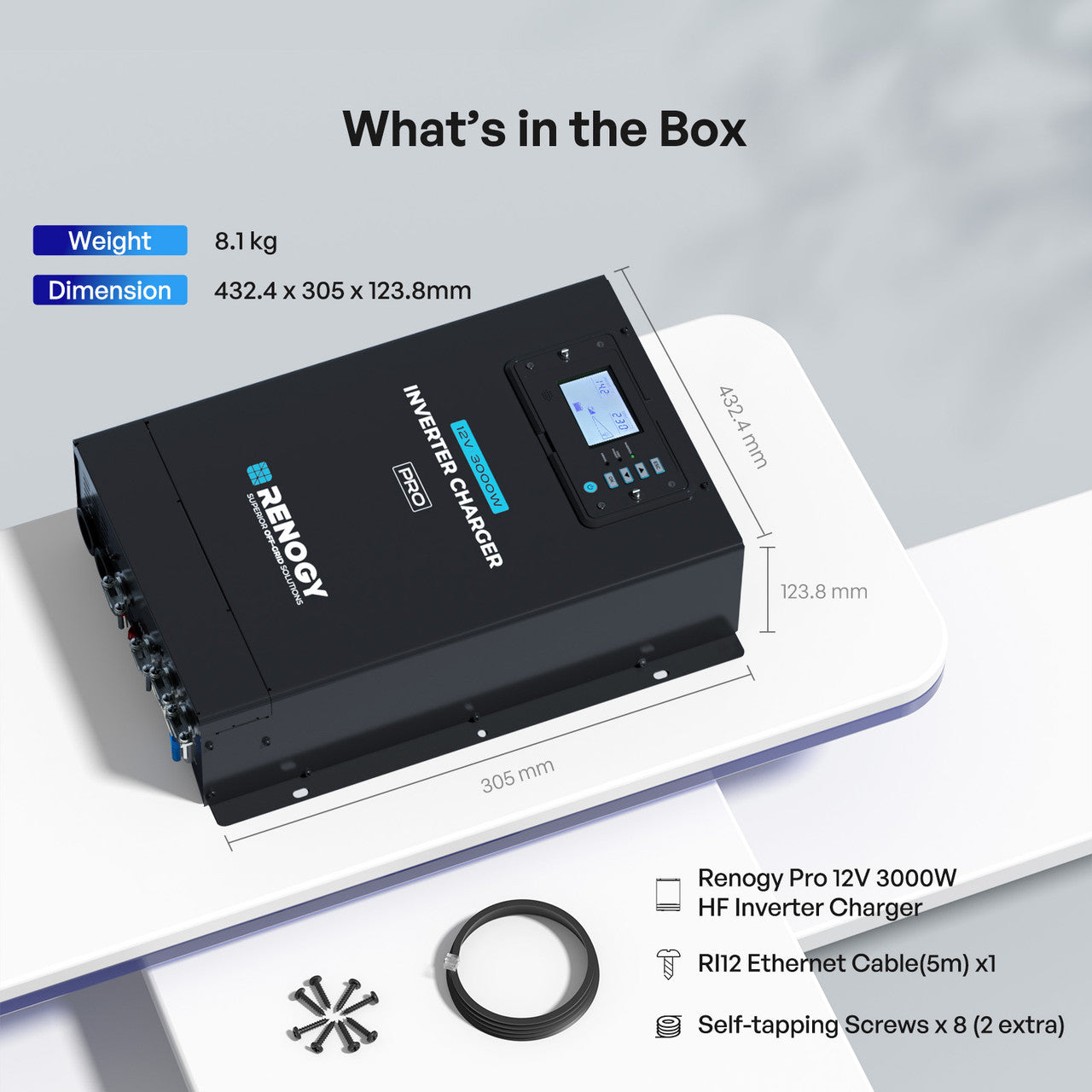

Dimensions: 17.02 x 12.01 x 4.87in/432.4 x 305 x 123.8mm
Storage Temperature: -30-70℃/-22-158°F
Weight: 17.9 lbs / 8.1 kg
Humidity: 0% ~ 95%
Warranty: 3 year

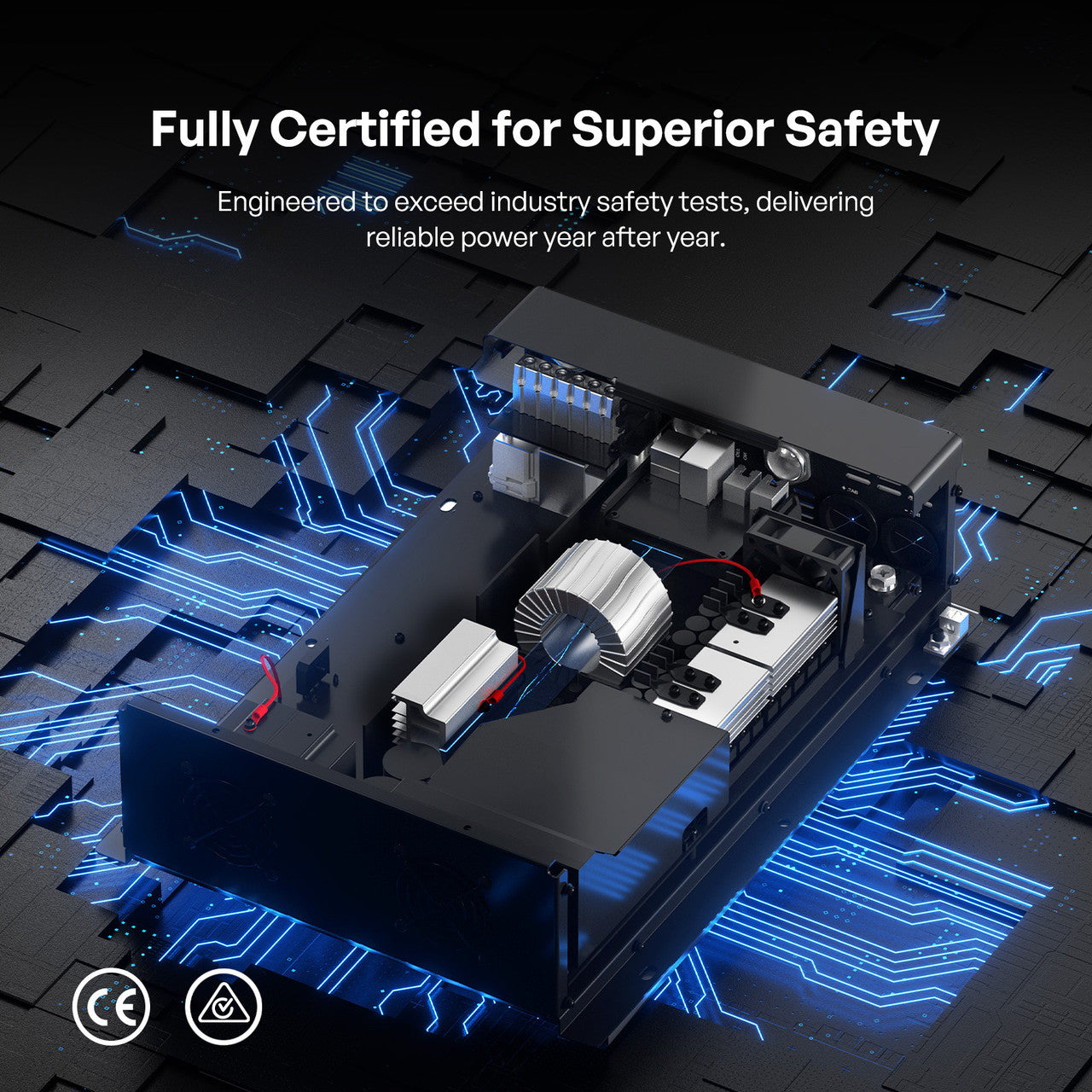

Certifications-EMC: AS/NZS 61000-6-3, AS/NZS 4268 and AS/NZS 2772.2
Certifications-Safety: AS/NZS 60335 and AS/NZS 4763
